Scrap Inventory Part

Overview

This flow(app) can be used to manually scrap the inventory parts in stock.

The complete overview of the flow(app):

Steps

Enter Location

  • Location No is required. Enter the location where you need to scrap the parts from.

  • Click on the List button to see a list of available locations.

Pin Step:

  • Display the user default Site ID and its description

Flow Connect

Flow Classic

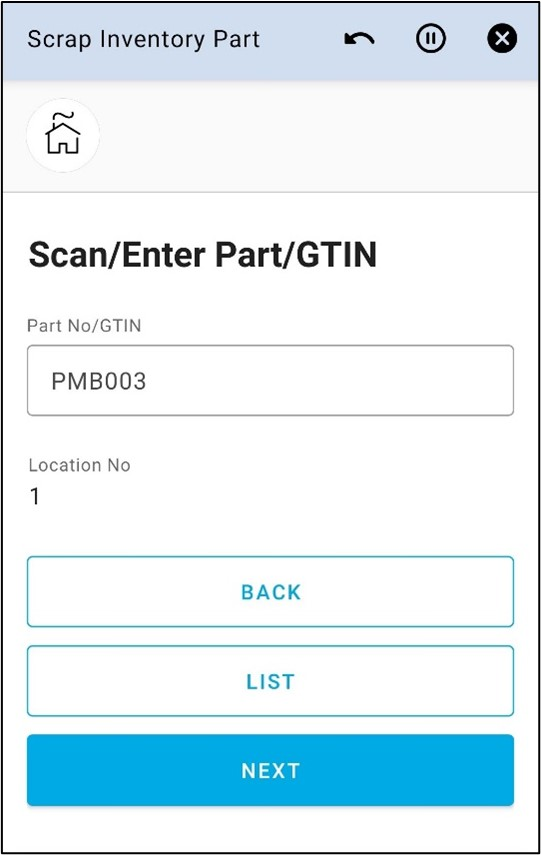

Enter Part/GTIN

  • Part No is required and should exist in the Location entered in the previous step.

  • Click on the List button to see a list of parts that satisfy the above condition.

Flow Connect

Flow Classic

Based on the selected Part user might be prompted with additional user steps to filter out Inventory Part In Stock records until a unique stock record is selected. For more info about these additional steps please refer Inventory Part In Stock Selection

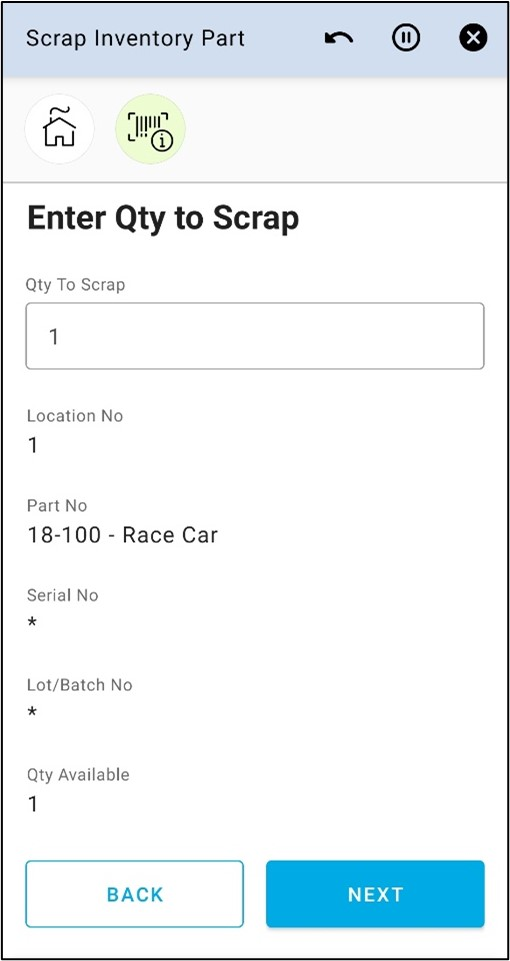

Enter Qty To Scrap

  • Qty to Scrap is required.

  • Quantity must be less than or equal to the available quantity.

Pin Step:

Display information about the selected Inventory Part In Stock record

Flow Connect

Flow Classic

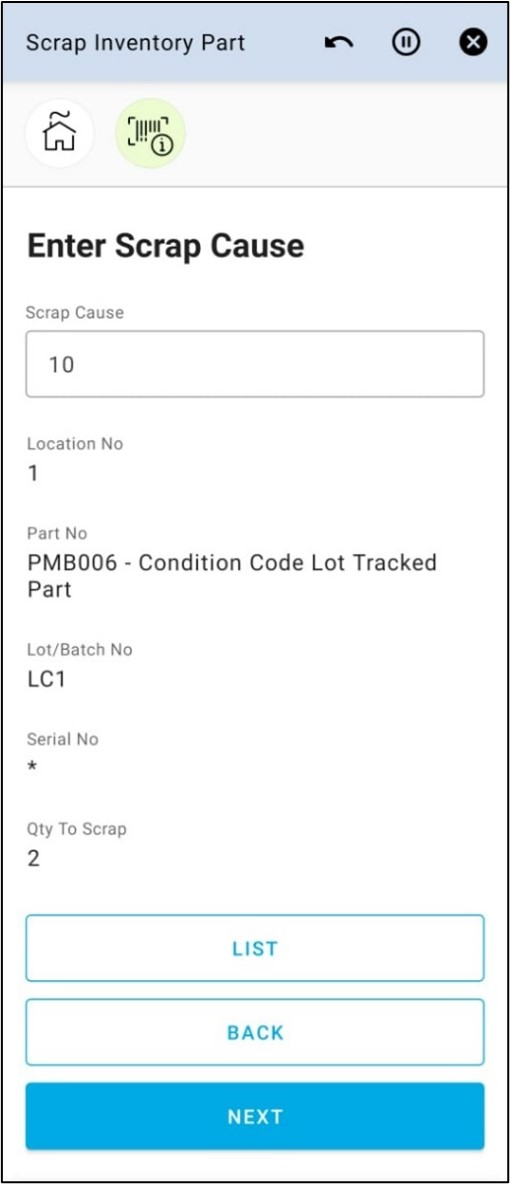

Enter Scrap Cause

  • Scrap Cause is required.

  • Click on the List button to see a list of scrap causes.

Flow Connect

Flow Classic

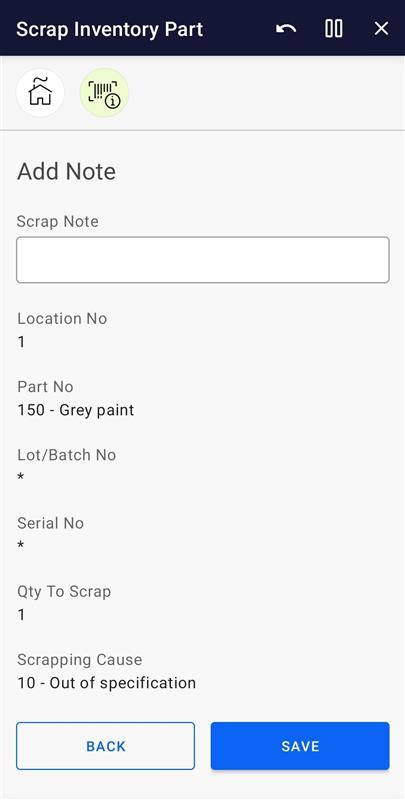

Add Note

  • Scrap Note is optional.

Flow Connect

Flow Classic
