# Report Picking of Parts ## Overview This flow(app) can be used to report picking of a part on a picklist which can be either shipment connected or not connected.

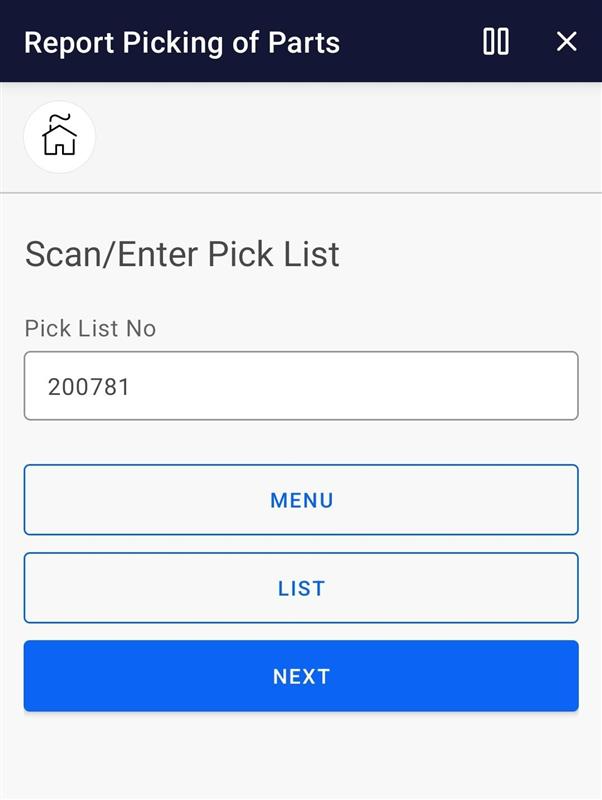

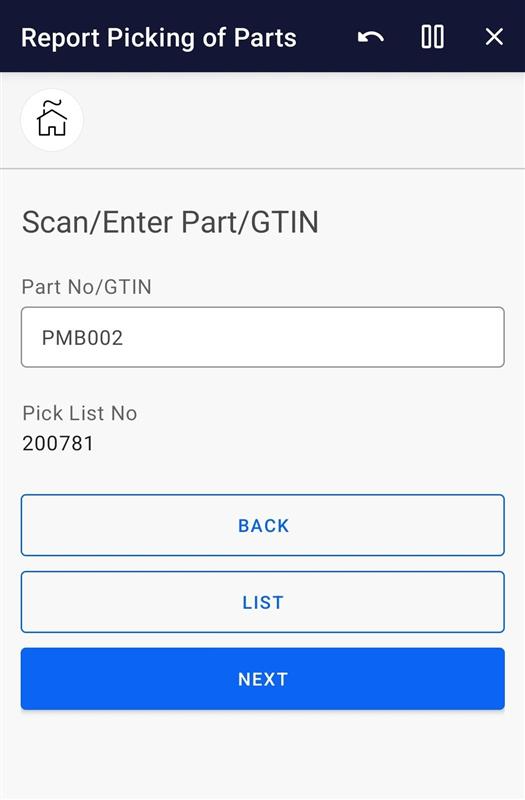

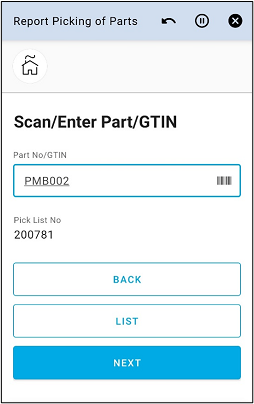

*The complete overview of the flow(app):* {% file src="" %} ## Steps ### **Enter Pick List No** * Pick List No is required and It should, * Belong to the user’s default site. * Have reserved quantity that is not picked yet. * Click on the **List** button to see a list of pick lists. {% hint style="info" %} **Pin Step:** Display the user default Site ID and its description. {% endhint %} | | | | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | Flow Connect | Flow Classic | ### **Enter Part No** * Part No is required and should be included in the picklist entered in the previous step * Click on the **List** button to see a list of parts that satisfy the above condition | | | | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | Flow Connect | Flow Classic | ### **Enter Order No** {% hint style="info" %} Only shown if there are multiple orders included in the pick ist. {% endhint %} * Click on the **List** button to see the list of orders included in the picklist | | | | - | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | | Flow Classic | ### **Enter Release No** {% hint style="info" %} Only shown if there are multiple Release No’s for the entered Pick List No/Part No combination. {% endhint %} * Click on the **List** button to see the list of Release No’s | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FKMAiw5b1JwN511rdAOGn%2FPicture280.png?alt=media\&token=63b435ba-5ae1-439b-a68f-012a2fd19ed4) | | - | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | | Flow Classic | {% hint style="info" %} *Based on the* **Pick by Choice** setting on the ***Site/Extended Site Info/Inventory/General tab** user will be selecting a stock record from either* **Inventory Part In Stock** (*when Pick by Choice is allowed*) *or* **Pick List Reservations** (*when Pick by Choice is not allowed*)**.** *Regardless of the source user might be prompted with additional user steps to filter out stock records until a unique stock record is selected. For more info about these additional steps please refer* [*Inventory Part In Stock Selection*](https://docs.novacura.com/marketplace-documentation/applications/explore-apps/ifs/warehouse-management/documentation/ifs-application-10/inventory-part-in-stock-selection)*.* {% endhint %} ### **Enter Qty to Pick** * Qty to Pick is required. {% hint style="info" %} **Pin Step:** Display information about the selected **Inventory Part In Stock** record. {% endhint %} | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FtOnAnUl0Z6f98TukqucF%2FPicture291.png?alt=media\&token=dd079a37-cd19-4318-a262-6a0f3bd500ec) | | - | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | | Flow Classic | ### **Select Shipment Inventory Location** {% hint style="info" %} Only shown if the picklist uses shipment inventory. {% endhint %} | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2Fjmm9Zi1umZzCNniOLA8D%2FPicture292.png?alt=media\&token=859e344f-2cef-470b-9c38-3b1ffc1c3738) | | - | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | | Flow Classic | ### **Select Shipment Handling Unit ID** {% hint style="info" %} Only shown if there are multiple shipment handling units on the shipment location to pick the part from. {% endhint %} | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2F9TudtbgVdDspWWPnP4NM%2FPicture293.png?alt=media\&token=34828900-2b15-4836-94b5-9b9fcba26f59) | | - | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | | Flow Classic | ### **Release Reservation** * You can also choose to release unpicked reservations if any. * Click on **Save** to complete the picking. | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FqUJJShZ448bzh5zNhPqx%2FPicture294.png?alt=media\&token=dd41b814-72ac-41db-bf53-977dc06a9dbd) | | - | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | | Flow Classic | ### **Select Temporary Serials** {% hint style="info" %} This step is shown only if the selected Part No is serial tracked at Receipt and Issue. {% endhint %} * Select as many temporary serial numbers as many qty has been picked * Click on the **Save** button to complete the process | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FxYsb1LCYhbJ8QoyPNrV3%2Fselect_temp_serial_2.png?alt=media\&token=d92b6f5d-69d4-4b45-879e-53e66caaf442) | | - | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | | Flow Classic |
