Count Handling Unit Per Count Report

Overview

This flow(app) is used to update the count for a Handling Unit using a count report.

The complete overview of the flow(app):

105KB

Count HU per Count Report - Overview.pdf

pdf

Steps

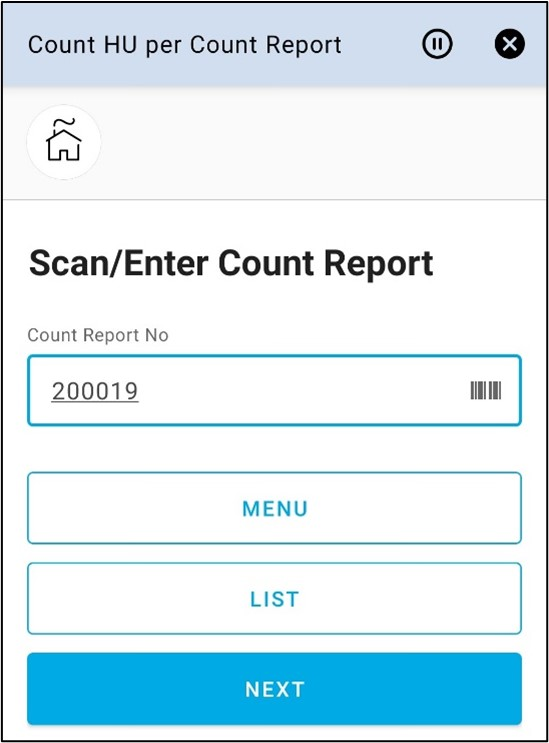

Enter Count Report

• Count Report No is required.

• Click on the List button to see a list of count reports.

Pin Step:

• Display the user default Site ID and its description

Flow Connect	Flow Classic

Enter Handling Unit

• Handling Unit ID is required and should be included in the count report entered in the previous step.

• Click on the List button to see a list of handling units.

Flow Connect	Flow Classic

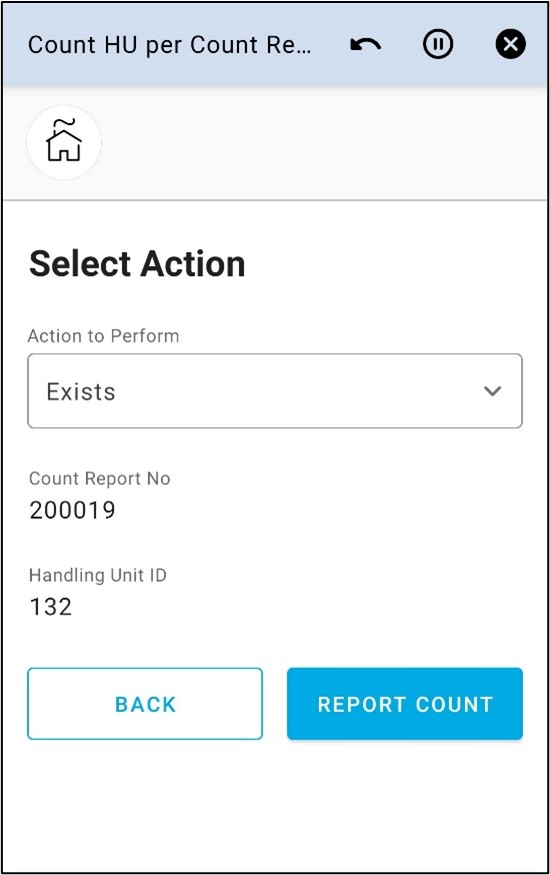

Select Action

• Choose an action for handling unit count report and options are,

  • Exists - Confirm the on-hand quantity of all the stock records attached to the handling unit.

  • Does not Exist - Count stock records attached to the handling unit to zero.

  • Count Sublevel - Continue the count with the next handling unit in the structure.

  • Count Part - Continue the count at the part level allowing the user to update the individual Part count by executing the Count Inventory Part Per Count Report Workflow.

Pin Step:

• Displays instructions for each item in Action to Perform dropdown

Flow Connect	Flow Classic

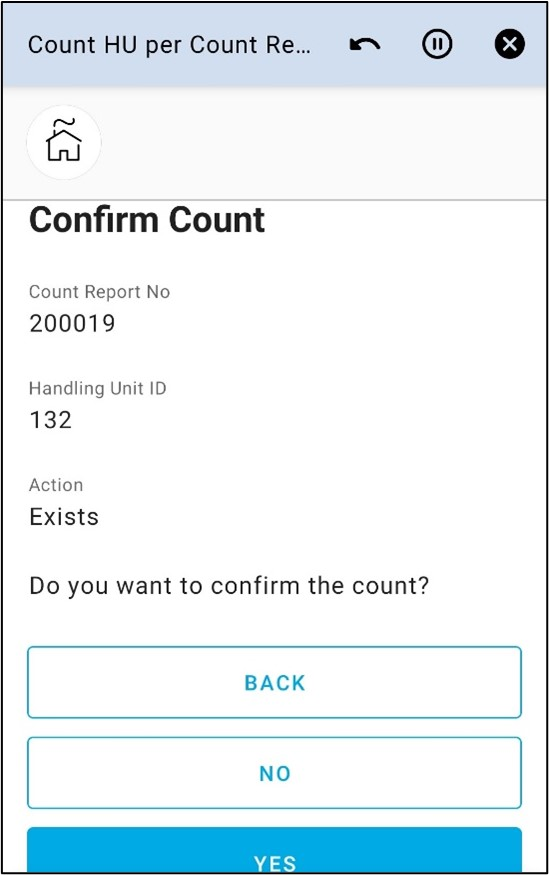

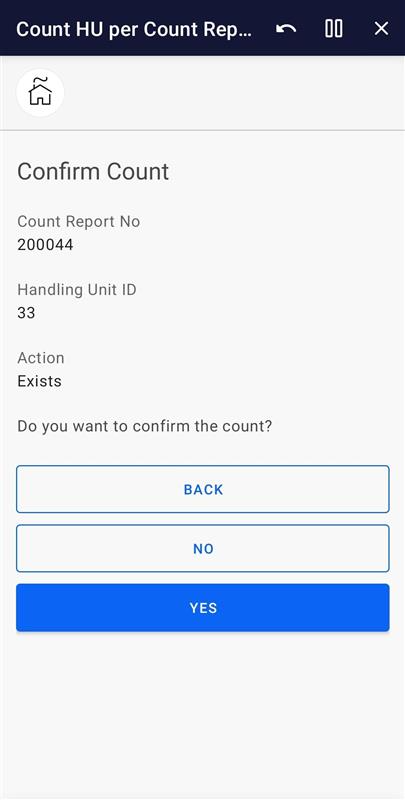

Confirm for Count Exists/Does Not Exist

• This step is only visible when you select either Exists or Does Not Exist options in the previous step.

• Select Yes to confirm the count.

Flow Connect	Flow Classic
