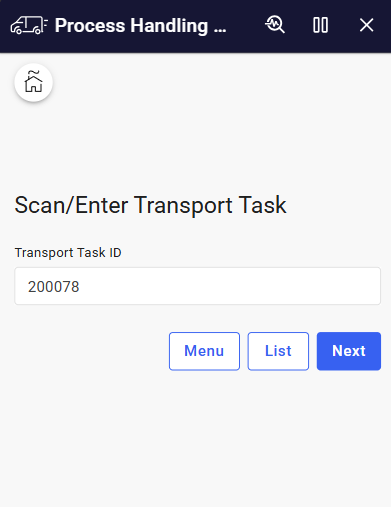

# Process Handling Unit on Transport Task ## Overview This flow(app) can be used to process Handling Units in a transport task. ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FTTUKICFehWCBrgJGDmhb%2FProcess%20Handling%20Unit%20on%20Transport%20Task.png?alt=media\&token=ec0b69c2-07b2-4f77-9c40-161ecac7c7d6) *The complete overview of the flow(app):* {% file src="" %} ## Steps ### Enter Transport Task ID * Transport Task ID is required. * Entered Transport Task ID is validated against transport task lines. Hence the Transport Task should have at least one task line, * In *’Created’* or *’Picked’* state. * Connected to a handling unit. * Outermost Handling Unit ID is not null. * From Site is set to user’s default site. * Click on the **List** button to see a list of Transport Tasks that satisfy the above conditions. {% hint style="info" %} **Pin Step:** * Display the user default Site ID and its description {% endhint %} | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FvzOA7Opu4XxZ9c83JuOB%2FPicture98.jpg?alt=media\&token=ff66803b-a14e-49bf-a088-162c82e9e402) | | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | Flow Connect | Flow Classic | ### **Enter From Location No** * From Location No is required and validated against transport task lines filtered by the Transport Task ID entered in the previous step. * Click on the **List** button to see a list of From Location No’s used in transport task lines for the given Transport Task. | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FwPaCREIjhZyjSxa5V2QO%2FPicture100.jpg?alt=media\&token=14caf4d0-41b2-4303-912d-87b946ef2592) | | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | Flow Connect | Flow Classic | ### E**nter Handling Unit ID** * Handling Unit ID is required validated against transport task lines filtered by Transport Task ID & From Location No entered in the previous steps. * Click on the **List** button to see a list of handling units that satisfy the above condition. | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FHyztavZFt6gWGGTwYYY1%2FPicture101.jpg?alt=media\&token=bc53953e-25b2-40fb-9485-5817801c3cbf) | | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | Flow Connect | Flow Classic | ### **Enter To Location No** * From Location No is required and validated against transport task lines filtered by the Transport Task ID entered in the previous step. * Click on the **List** button to see a list of From Location No’s used in transport task lines for the given Transport Task. | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FOybC8yTyhZCw3ygA097u%2FPicture103.jpg?alt=media\&token=9475faa6-30a3-406c-b053-6afaa73ebce5) | | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | Flow Connect | Flow Classic | ### **Select Action** * Pick Action depends on the task line state. * If the task line is in the Created state it will show ***Pick,*** ***Execute.*** * If the task line is already in the Picked state it will show ***Unpick,*** ***Execute***. * Click on the **Save** button to complete the process. | | ![](https://3218748546-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MiW42YxFsGXIDjQJKNR%2Fuploads%2FZeXqBdgbuaGlekjhiZhi%2FPicture104.jpg?alt=media\&token=1e7cfe7a-8dc8-4dd4-9eaa-5feb8451b7e7). | | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | | Flow Connect | Flow Classic |
